From Margins to Missed Views: What Causes Patent Drawing Rejections?

In this article

After years in patent prosecution, I’ve seen a recurring blind spot, even among seasoned inventors and in-house teams. Everyone knows patent drawings are required in applications, but they’re often treated as afterthoughts while all focus goes to claims and specs.

That’s a mistake. A patent drawing can do what the spec sometimes can’t: show structure, shape, and connections clearly. It can even save a filing if the written description is incomplete, acting as a fully supported, legally adequate backup.

But when drawings are rushed or poorly executed? Minor issues like a missing view, inconsistent labeling, or a formatting slip can lead to rejections, delays, and weakened enforceability.

And international filings only magnify the risks. What passes at the USPTO might be rejected by the EPO or JPO for something as small as improper shading or incorrect sheet margins.

In this article, I’ll break down the most common (and preventable) patent drawing-related rejection triggers across global patent offices. Later, we’ll see how you can avoid these from happening from day one.

What Causes Patent Drawing Rejections?

Patent drawings across all types of applications get rejected for various reasons. However, based on my review of numerous cases, most patent drawing rejections fall into a few clear, recurring categories. Here are some of the most common:

Missing Required Views

A “view” shows the invention from a specific angle to help examiners understand its structure and function in relation to the claims.

Patent offices expect drawings to clearly highlight key structural features. If you don’t include enough views, especially for complex or multi-part inventions, you risk rejection or an office action for insufficient disclosure.

Inconsistencies Between Figures

When reference numerals assigned to identical components vary across figures, it undermines the structural traceability of the invention. It creates ambiguity that may prevent examiners from correlating elements correctly. The result is rejection.

This is a formal issue not just in the EPO under Article 84 EPC and Rule 46, but also in the USPTO 37 CFR § 1.84 p and PCT Rule 11.13 m. Consistency is a baseline expectation across jurisdictions, and deviations are routinely flagged as deficiencies. Precision in cross-figure labeling is not just best practice; it is a requirement.

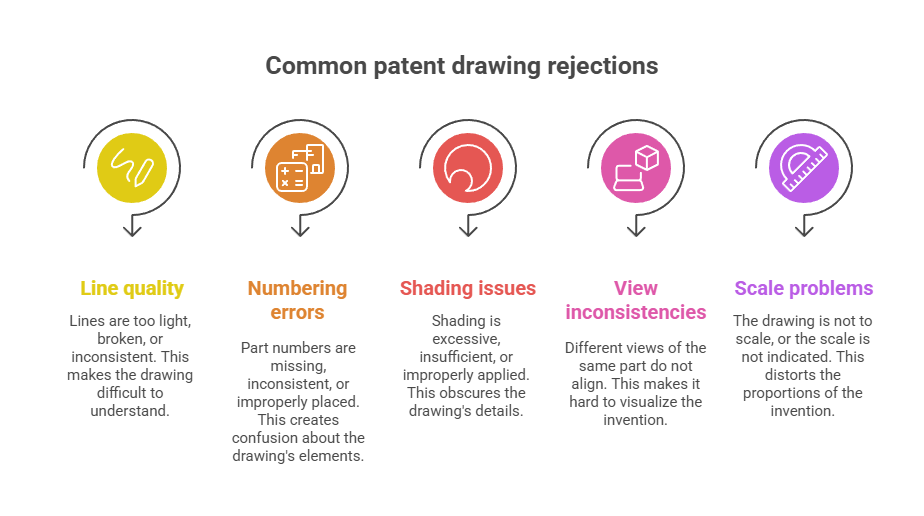

Common Reasons for patent drawing rejections

Illegible or Cluttered Drawings

Drawings that are overly dense, poorly labeled, or hand-drawn can lead to formal objections. Most patent offices have minimum line thickness and legibility standards. For example, the USPTO requires that drawings remain legible when reduced to two-thirds of their original size.

This isn’t just a procedural issue; it has real legal consequences. Take the well-known case of Times Three Clothier, LLC v. Spanx, Inc. The court invalidated two patents after finding that the submitted drawings were inconsistent and lacked the clarity required to meet legal standards.

Text Violations

Many inventors make the mistake of inserting descriptive text directly into the figures. But the text in drawings is tightly restricted. The USPTO permits minimal, necessary labels, i.e., no brackets, circles, or decorative fonts. The EPO is even stricter. You are allowed to add text only when absolutely indispensable. Flowcharts are an exception, but even then, the wording must be brief and placed away from drawing lines.

Incorrect Sheet Size or Margins

Patent offices don’t just care what’s on the page; they care how the page is formatted. Drawings filed with the USPTO must be on A4 or 8.5×11-inch sheets, with usable drawing areas and minimum margins strictly enforced. In comparison, the EPO regulations require A4 paper and limit usable space to 26.2 cm by 17.0 cm. Even a small error in margins can result in a procedural objection.

Now, even if you’ve carefully addressed all the major drawing requirements and successfully filed in one jurisdiction, that doesn’t mean your drawings will meet the standards elsewhere.

That’s what we will understand in the next section.

Where Drawing Standards Vary Across Jurisdictions (Including but Not Limited To)?

As I referred to above, drawing standards like sheet sizes and margins can differ between offices. What is fully compliant under USPTO guidelines might trigger objections in the EPO, JPO, or other offices.

So, here let’s take a closer look at how drawing standards vary across jurisdictions and where inventors often get tripped up when filing internationally.

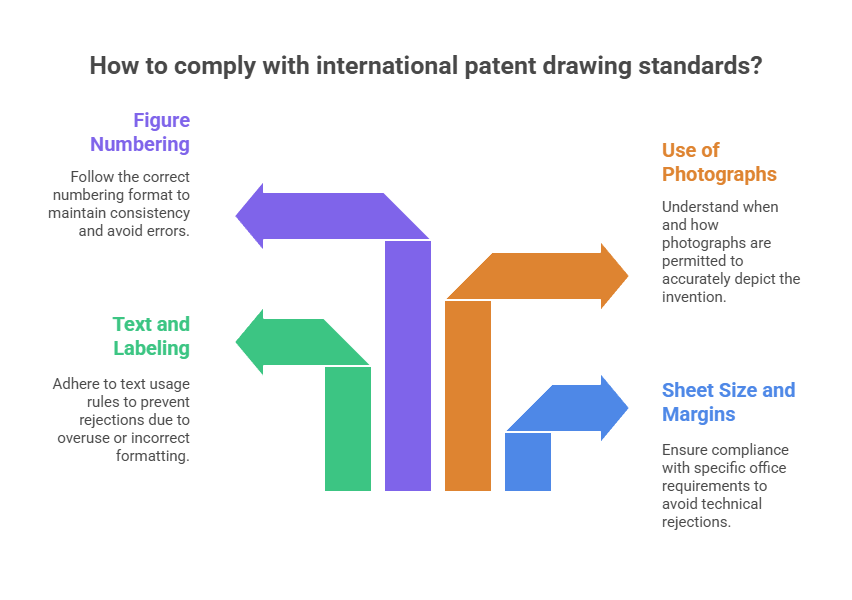

How to comply with international drawing standards to avoid patent drawing rejections?

Sheet Size and Margins

The USPTO accepts both A4 and 8.5×11-inch paper, while the EPO and PCT systems require only A4. Margins must also comply. For example, PCT Rule 11.6 requires at least 2.5 cm on top and left, 1.5 cm on the right, and 1.0 cm at the bottom. Filing drawings with the wrong format can lead to technical rejections, even if the invention itself is sound.

Text and Labeling Rules

Text rules can also vary across the offices. For instance, the USPTO allows limited text (e.g., “On,” “Off,” “Open”) but prohibits decorative formatting or embedded text in shaded areas. The EPO only allows text when it’s essential for understanding, usually in block diagrams or chemical compositions. Overuse of text is a frequent trigger for rejections in international filings.

Use of Photographs

Photographs are generally discouraged unless no other format can accurately depict the invention. The USPTO permits black-and-white photos only in exceptional cases (e.g., biological slides) and requires a petition. The EPO may accept photos for biological material but converts them to black-and-white. The Indian Patent Office (IPO) allows photos in design applications but not in utility patents. And in the UK, photos are allowed too, you can’t use colored ones.

Most patent offices follow a strict rule: you must use a consistent format. You cannot mix photographs with black-and-white line drawings; choose one or the other.

Figure Numbering and Consistency

Figure numbering is another detail that varies across patent offices. The JPO uses plain Arabic numerals (1, 2, 3…) without the “Fig.” prefix, and reference signs must align precisely with the specification. In contrast, the USPTO and EPO require “Fig.” before each number and enforce strict consistency between reference signs in the drawings and the written description.

Use of Contour and Tangent Lines

The use of line shading is treated differently across jurisdictions. For instance, the USPTO explicitly allows, and even requires, line shading in design patents to depict character and contour.

In contrast, many other jurisdictions do not require line shading and some even do not allow it. For example, the EPO discourages excessive shading or contouring. According to the EPO Guidelines, shading should only be used if it helps in understanding the invention and must not obscure the drawings. In China, line shading is also discouraged.

Essentially, the first significant step in getting your patent drawings approved is understanding and then adhering to the drawing guidelines. Such guidelines can vary across the PTOs.

Remember, drawing mistakes don’t just cause delays. They can cost you time, money, and protection. A rejected or delayed patent gives competitors a window to copy your invention. That’s why getting drawings right early matters.

How to Avoid Patent Drawing Rejections from Day One?

Most patent drawing rejections are entirely avoidable. Having worked with dozens of inventors, law firms, and in-house teams, I’ve seen how a disciplined approach to patent drawings can prevent costly office actions. Here’s how I recommend you tackle it:

1. Create a Jurisdiction-Specific Drawing Checklist

Every patent office has its own drawing requirements. For example, the USPTO enforces strict rules on line weights and reference numerals, while the EPO mandates consistent cross-referencing in the description. So, to stay compliant, I maintain a checklist of requirements for different jurisdictions and refer to it whenever filing in a new country.

2. Work With a Professional Patent Drawing Service

PTO-compliant drawings demand both precision and experience, which is why many inventors turn to patent drawing services providers. They have professional draftsmen who specialize in patent illustrations. These experts understand exactly what patent examiners look for and often get it right on the first try, saving time and avoiding rework. However, their services typically cost $45–$75 per drawing, which can be a stretch for early-stage teams or high-volume filings.

3. Use Drawing Tools That Enforce Compliance

For teams with tighter budgets or engineering-led workflows, I recommend compliance-focused tools like Pinch. This basically converts your CAD files into editable, jurisdiction-compliant drawings that meet USPTO and international standards, all at a lower cost. Just be sure to review the output carefully for legal alignment.

4. Get a Legal Review Before You File

Even flawless drawings can result in rejections if they conflict with your claims or spec. I always recommend that innovators have a final legal review by an attorney. They can judge better if figures support and do not expand or contradict the written disclosure. This step alone prevents a significant number of avoidable office actions.

Additionally, as drawing standards continue to evolve across jurisdictions, staying compliant isn’t just about meeting today’s rules; it’s about future-proofing your patent filings. Whether you choose professional services or smarter tools, the goal remains the same: create drawings that support your claims, meet every requirement, and hold up under scrutiny.

Get this right early, and you’ll avoid the most common and costly setbacks in prosecution.
